Digital Pressure Gauge

  • Read More

    Digital Pressure Gauge DPG-KX4.0

    ■ OEM service
    ■ SS304 case & connection
    ■ 5-digit LCD display, high resolution
    ■ Superior Accuracy ±0.2%F.S.
    ■ Various pressure units available
  • Read More

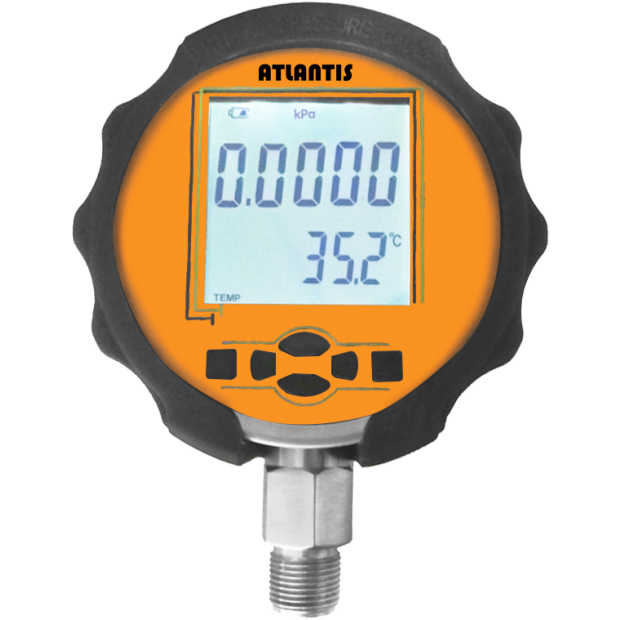

    Digital Precision Pressure Gauge AT803

    Digital Precision Pressure Gauge
    Model: AT803

    Introduction
    The accuracy of AT803 digital precision pressure gauge can up to 0.02%, which is suitable for high precision pressure measurement such as field and laboratory pressure measurement and calibration.

    Features
    ■ OEM service
    ■ High accuracy - up to 0.02%
    ■ 5- or 6-digit LCD display with backlight
    ■ Zero adjustment button
    ■ Low power consumption - continually operate over 10000 hours
    ■ Large display screen 58 x 29 mm
    ■ Switchable pressure units: mmH2O, mmHg, kgf , kPa, MPa, psi, bar, mbar

    Main Specifications
    ▼Size
    3.5”(95 mm)
    Thickness: 41mm
    ▼Pressure connection
    Material: SS316
    Laser welding
    Size: 1/2”PT
    Other thread type available upon request
    ▼Pressure range
    Please refer to pressure range and accuracy table
    ▼Applicable media
    Liquid and gas that compatible with SS 316/ Pure, non-corrosive gas
    ▼Ambient temperature
    -20°C to +70°C
    ▼Storage temperature
    -40°C to +85°C
    ▼Media temperature
    -10°C to +50°C
    ▼Ambient humidity
    95% R.H.
    ▼Atmospheric pressure 860…1060 mbar
    ▼Temperature drift
    Standard temp.: 20℃
    max. error: ±0.1% F.S
    (@0~50℃)
    ▼Protection level
    IP54
    ▼Accessory
    Power Supply

    Other Specifications
    ▼Ring
    Aluminum die casting
    ▼Case
    Aluminum die casting
    ▼Screen display
    5-digit LCD (0.1%/0.2%)
    6-digit LCD (0.02%/0.05%)
    White backlight
    ▼Refresh rate
    Adjustable refresh rate: 3 times/1sec to 1 times/10secs
    ▼Screen size
    58 (W) x 29 (H) mm
    ▼Pressure unit
    mmH2O, mmHg, kgf , kPa, MPa, psi, bar, mbar
    ▼Resolution
    0.0001
    ▼Communication port (option)
    RS232
    ▼Measuring elements
    High-tech silicon chip
    SS 316L diaphragm
    ▼Accuracy
    Please refer to pressure range and accuracy table
    ▼Overpressure
    Please refer to pressure range and accuracy table
    ▼Compensated temperature
    0°C to 50°C
    ▼Power supply
    AA batteries x3/ DC 9V (2A)
    ▼Battery life
    Please refer to battery life table
    ▼Weight
    450g

    Download
  • Read More

    1.5”Economic Digital Air Pressure Gauge DPG-A1.5(BK)

    DPG-A1.5 (BK) small size digital pressure gauge is designed for air pressure measurement, suitable for general industrial application.
  • Read More

    Intelligent LED Pressure Switch SDPS-4ED(0.5)

    SDPS-4ED(0.5) intelligent pressure switch combines pressure measurement, display, and control in one, adopts high quality piezoresistive silicon and isolated diaphragm as measuring elements. SDPS-4ED(0.5) has a variety of setting functions and easy to calibrate, suitable for pressure measurement, display and control in power plants, water, petroleum, chemical, engineering and other industrial environments.
  • Read More

    Digital LCD Pressure Switch DPS-K3.0

    Digital LCD Pressure Switch
    Model: DPS-K3.0

    Features
    ■ OEM service
    ■ Easy switch wiring and setting
    ■ AC/DC Power supply available
    ■ Affordable price with long service life
    ■ In-built relay (one set or two set)
    ■ Adjustable upper limit and lower limit
    ■ Vibration-resistance design
    ■ Short circuit and reverse current protection
    ■ Reset to zero function

    Main Specifications
    ▼Size
    3”(80mm)
    ▼Installation type
    Bottom mount/Back mount
    ▼Pressure connection
    Material: SS 304
    1/4”PT
    1/4”NPT
    M20x1.5
    Other specs are available, please specify your requests.
    ▼Pressure range
    Min.: -0.1 MPa
    Max.: 100 MPa
    ▼Applicable fluid
    Liquid and gas that compatible with SS 304
    ▼Ambient temperature
    0°C to +70°C
    ▼Storage temperature
    -20°C to 70°C
    ▼Fluid temperature
    +80°C
    ▼Operating humidity
    35~85% R.H.
    ▼Atmospheric pressure
    860…1060 mbar
    ▼Temperature error
    Standard temp.: 22℃
    max. error: ±0.5% F.S
    (0~50℃)
    ▼Protection level
    IP54

    Other Specifications
    ▼Case
    ABS (standard)/ Stainless steel (option)
    ▼Screen display
    4-digit LED
    ▼Refresh rate
    2 secs/times
    ▼Screen size
    40 (W) x 17 (H) mm
    ▼Pressure unit
    MPa, psi, kgf/cm2
    ▼Resolution
    0.001
    ▼Power supply
    DC: 12/24V (standard)
    AC: 220V/380V (option)
    ▼Switch signal
    Relay x1 (standard)/
    Relay x2 (option)
    ▼Contact rating
    3A
    ▼Measuring elements
    High-tech silicon chip SS 316L diaphragm
    ▼Accuracy
    ±1%
    ▼Overpressure protection
    1.5*F.S.
    ▼Compensated temperature
    0°C to 60°C
    ▼Weight
    270g

    Download
  • Read More

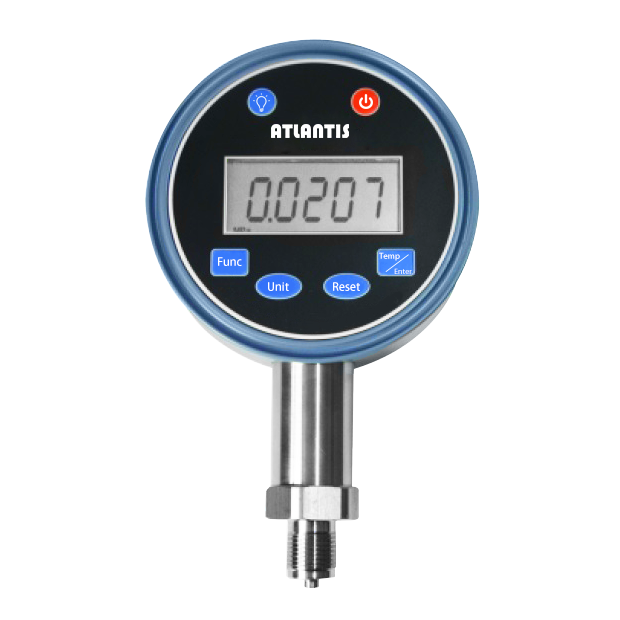

    Digital Pressure Gauge DPG-806XB

    DPG-806XB digital pressure gauge adopts diffused silicon as measuring element, features wide pressure range and highest accuracy can up to 0.1%. It is suitable for hydraulic, oil, and air pressure measurement.
  • Read More
    DPG-0.25B3.0 _5CD_.png

    Multifunction Digital Pressure Gauge DPG-0.25B3.0 (5CD)

    DPG-0.25B3.0 (5CD) multifunction digital pressure gauges features integrated stainless steel design, complete functions, and high measuring accuracy. Suitable for a variety of industrial pressure testing requirements.
  • Read More

    Economical Digital Pressure Gauge DPG-1.0B2.5 (4.5CD)

    DPG-1.0B2.5 (4.5CD) economical digital pressure gauge is lightweight, low power consumption, and complete basic functions, which is suitable for general pressure measurement needs.
  • Read More

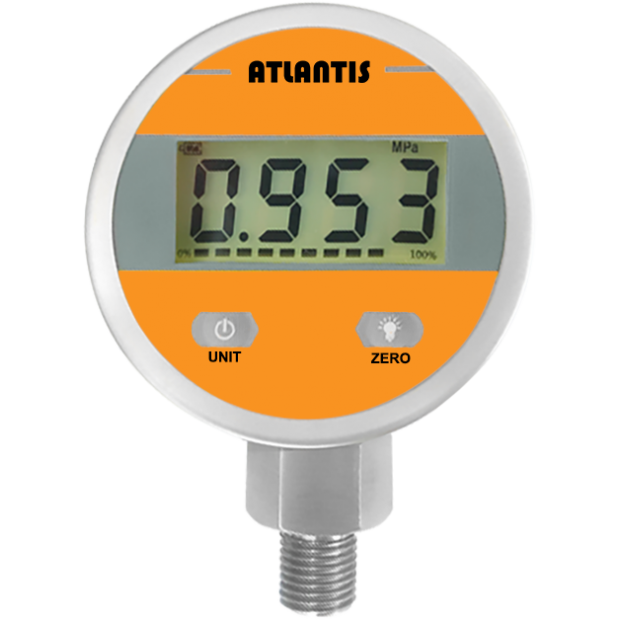

    4”Digital Pressure Gauge DPG-K4.0

    ■ OEM service
    ■ 4-digit LCD screen display with blue backlight ensures clear reading in the dark place
    ■ Plastic / Stainless steel case available
    ■ Power saving mode - auto turn off backlight after 10 secs
    ■ Calibration mode - reset pressure reading to zero when screen display effected by ambient temperature
  • Read More

    3”Digital Pressure Gaug DPG-K3.0

    ■ OEM service
    ■ 4-digit LCD screen display with blue backlight ensures clear reading in the dark place
    ■ Plastic / Stainless steel case available
    ■ Power saving mode - auto turn off backlight after 10 secs
    ■ Calibration mode - reset pressure reading to zero when screen display effected by ambient temperature
  • Read More
    DPG-Q2.5_ATLANTIS LOGO.png

    Ø60 Digital Pressure Gauge DPG-Q2.5

    DPG-Q2.5 digital pressure gauge adopts high tech piezoresistive silicon chip pressure sensor. The output signal will be processed through a high accuracy and low temperature drift amplifier then processed by a high accuracy analog to digital converter. The signal will be transformed to digital signal which microprocessor can process. The LCD screen will display the calculated value. DPG-Q2.5 features easy, installation operation and setting, which is suitable for fluid pressure measurement in industrial application.
  • Read More
    DPG-A70 _2_.png

    Mini Air Digital Pressure Gauge DPG-A70 series

    DPG-A70 mini air digital pressure gauge has 3 product types available (compound / vacuum / positive pressure), adopts 4-digit, 7 segment LCD display with 2 colors (red & green) for main display, and orange for sub-display. It is suitable for limited places and applicable to filtered air, non-corrosive and non- flammable gas measurement.
