Diaphragm

  • Read More
    Diaphragm Seal (Welded type)

    Diaphragm Seal (Welded type) DS190(W)

    Diaphragm seal is used with pressure gauges and pressure transmitters, especially when medium is corrosive, contaminated, viscous, crystalline or with impurities. DS190(W) series is particularly used in mechanical engineering, plants, chemical, petrochemical industry and general heavy industry.
  • Read More

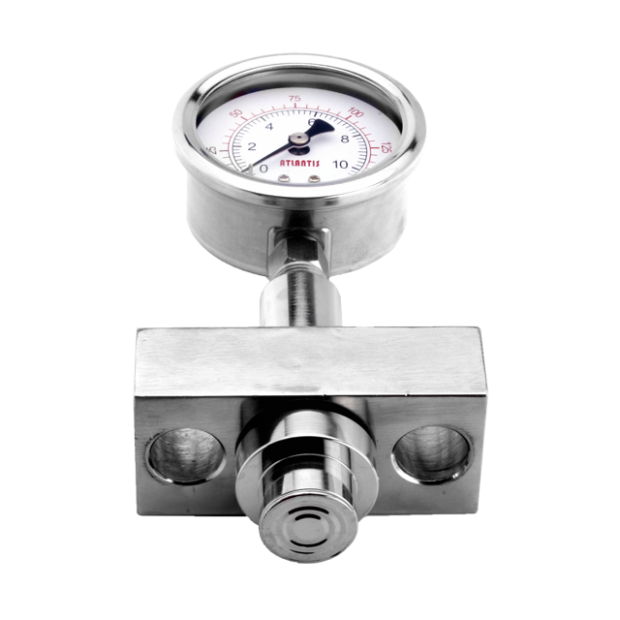

    DIAPHRAGM PRESSURE GAUGE Sanitary Process Connection – Homogenizer FlangeType, DS350

    APPLICATIONS
    Diaphragm pressure gauges are used when
    medium is high viscous, crystalline or with
    impurities. DS350 series is particularly used
    in homogenizer.
  • Read More

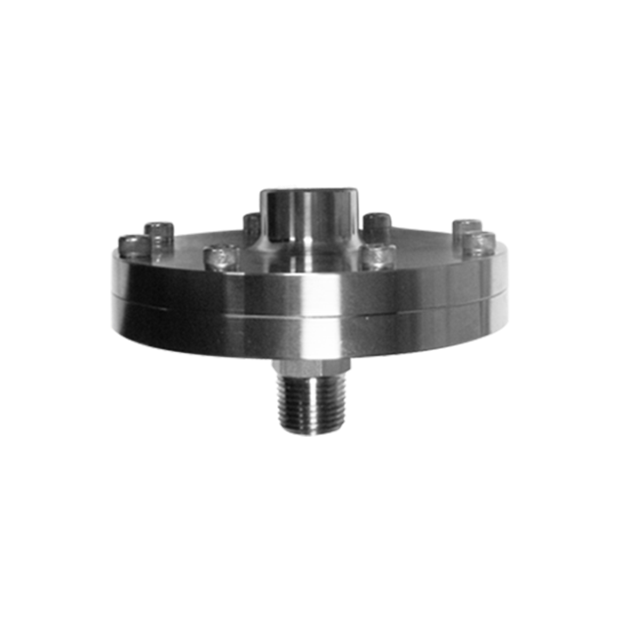

    不鏽鋼牙口隔膜壓力錶_螺絲組_DS190 只有隔模座.png

    DIAPHRAGM PRESSURE GAUGES, Threaded Process Connection, DS190(S) series

    APPLICATIONS
    Diaphragm pressure gauges are used when medium
    is corrosive, contaminated, viscous, crystalline or
    with impurities. DS190(S) series is particularly used
    in chemical and petrochemical industry, mechanical
    engineering, plants and apparatus construction.
  • Read More

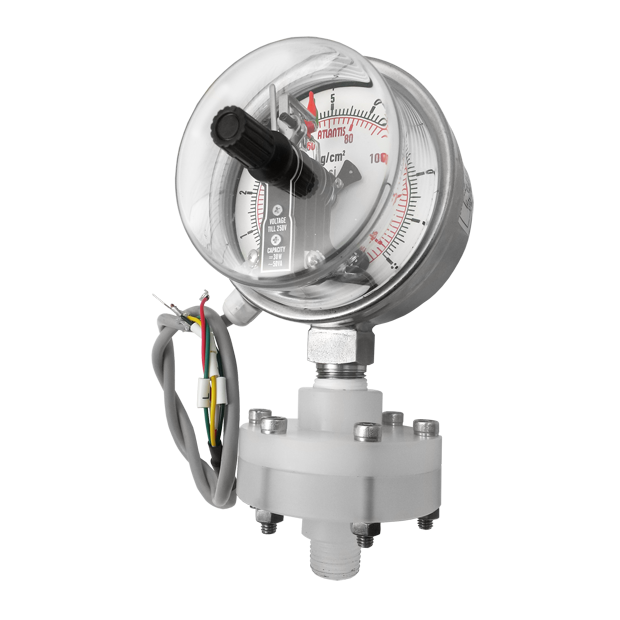

    DS180(S)

    DIAPHRAGM PRESSURE GAUGE Threaded Process Connection , Plastic material, DS180 (S) series

    Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous , crystalline or with impurities.
    DS180 (S) series is p articularly used with high corrosive medium. Industries of chemical, plating, waste water treatment and fertilizer are the most common applications.
  • Read More

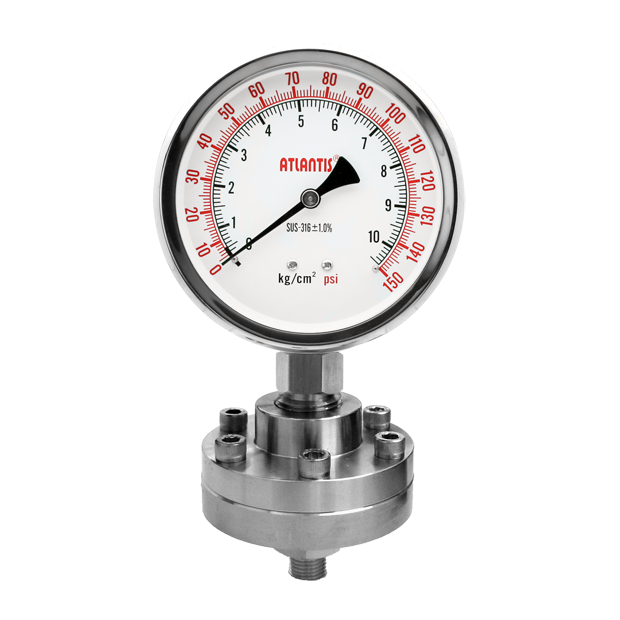

    DIAPHRAGM PRESSURE GAUGE Threaded Process Connection, DS160(S) series

    APPLICATIONS
    Diaphragm pressure gauges are used when medium
    is corrosive, contaminated, viscous, crystalline or
    with impurities. DS160(S) series is particularly used
    in chemical and petrochemical industry, mechanical
    engineering, plants and apparatus construction.
  • Read More
    wika 990_衛生 DS500 _VARIVENT® 專用_.png

    DIAPHRAGM PRESSURE GAUGE Sanitary Process Connection - Threaded Coupling Type, DS400 series

    APPLICATIONS
    Diaphragm pressure gauges are
    used when medium is high
    viscous, crystalline or with
    impurities. DS400 series is
    particularly used in food,
    beverage and pharmaceutical
    industry, dairies, dairy-products
    and breweries.
  • Read More

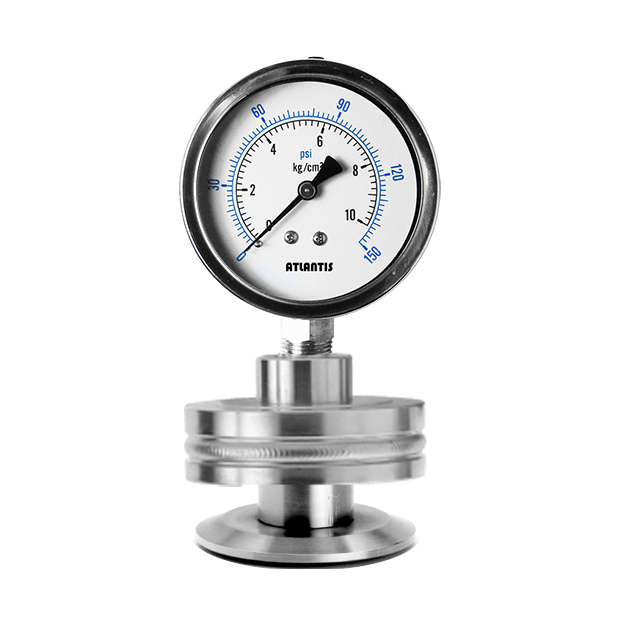

    DS170(W) + Ferrule.png

    DIAPHRAGM PRESSURE GAUGE Similar Sanitary Process Connection-Welded & Tri-Clamp   type, DS170(W) + Ferrule

    Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. DS170(W) + Ferrule  series is particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction…etc.
  • Read More
    DS170(W) series.jpg

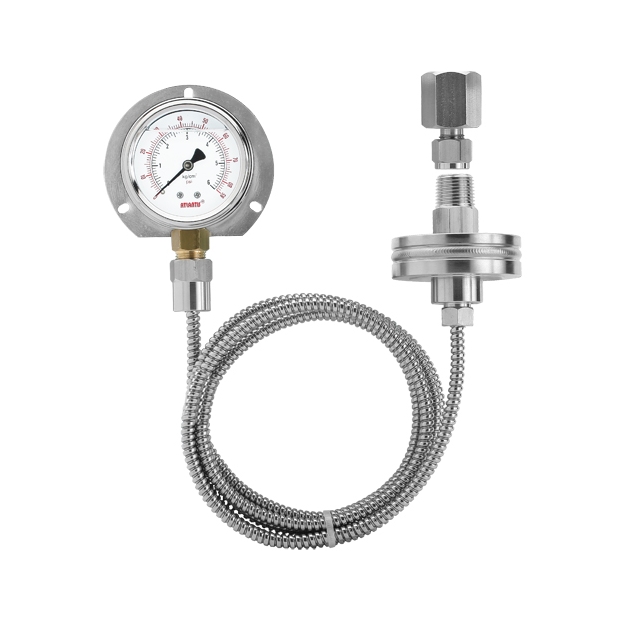

    DIAPHRAGM PRESSURE GAUGE Threaded Process Connection-Welded one-piece type, DS170(W) series

    Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. DS170(W) series is particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction.
  • Read More

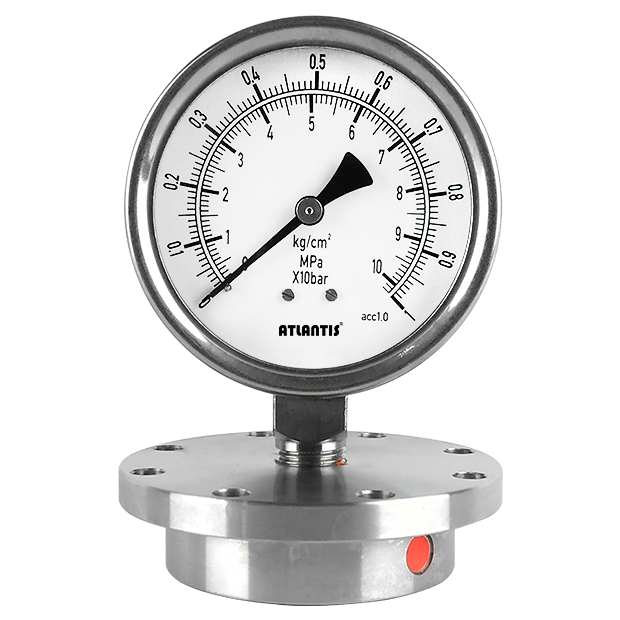

    Diaphragm Seal Sanitary Pressure Gauge

    Diaphragm Seal Sanitary Pressure Gauge (For Food and Beverage Industry) DS600

    DS600 adopts welding flange with DRD connection, suitable for sterilization in place (SIP) and cleaning in place (CIP) applications, as well as in food, beverage, and pharmaceutical industry applications, such as dairy products, breweries, soft drinks, etc.
  • Read More

    DIAPHRAGM SEALED Simple Flange Process Connection-Single/Double flange type DS250 series

    Diaphragm pressure gauges are used when medium is corrosive, contaminated, viscous, crystalline or with impurities. Flange type diaphragm seal is especially suitable for highly viscous or crystallizing media. DS250 can be used for low pressure from 3 psi. It can be cleaned by removing the lower housing.
  • Read More

    Dry Type Double Flange Diaphragm DS200 Series

    Diaphragm pressure gauges are used when medium fluid is corrosive, contaminated, viscous and crystalline or with impurities. DS148(W) series is particularly used in chemical and petrochemical industry, mechanical engineering, plants and apparatus construction.
  • Read More
    DDS1160 _S_.png

    Dry Type Threaded Diaphragm Seals DDS1160 (S)

    Isolate pressure gauge from corrosive, viscous, and low crystallinity fluid./Base on the diaphragm material is PTFE, the minimum measureable pressure is 1000mmH2O /Threaded diaphragm seals with flushing hole (option)
