Pressure Gauge

  • Read More
    Stainless Steel Case Pressure Gauge.png

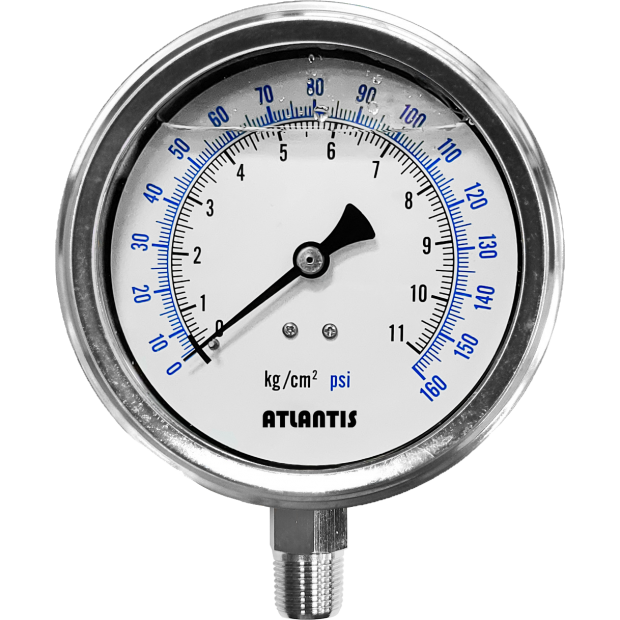

    Stainless Steel Case Pressure Gauge SC

    SC pressure gauge has various size and installation type for selection, which is suitable for measuring slight corrosive media that compatible with copper alloy. Particularly used in hydraulics, compressors, general mechanical engineering, pumps, water treatment plants.
  • Read More
    All Stainless Steel Pressure Gauge.png

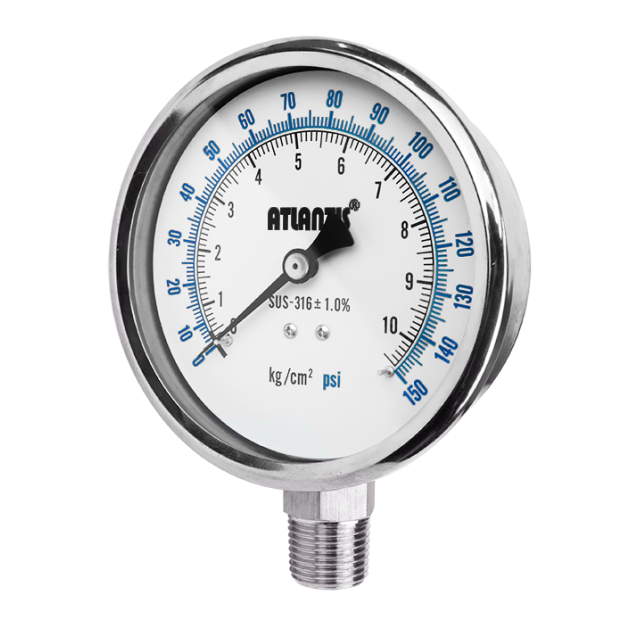

    All Stainless Steel Pressure Gauge SUS

    SUS pressure gauge has various size and installation type for selection. It applicable to measure slight corrosive media that compatible with stainless steel. Particularly used in chemical, petrochemical, food industry, biochemistry and any rush industries.
  • Read More

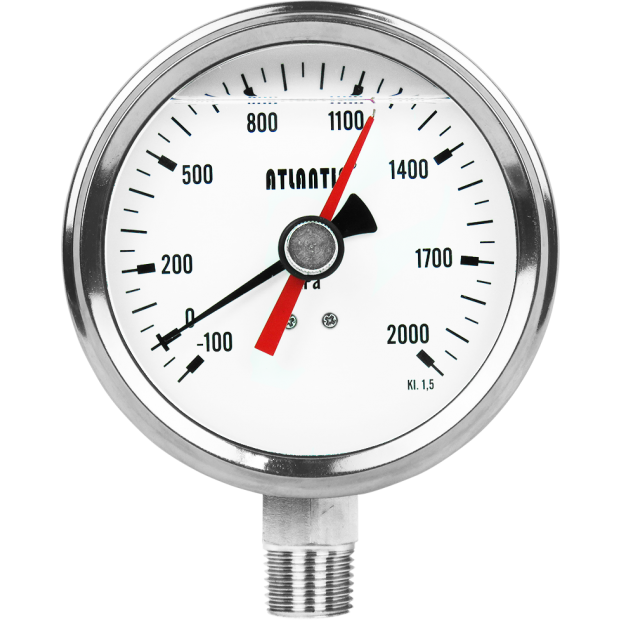

    Pressure Gauge with Peak Hold Pointer.png

    Pressure Gauge with Peak Hold Pointer PHPG

    Peak hold pointer can indicate the peak pressure value, ensuring the safety management in field operation.
  • Read More

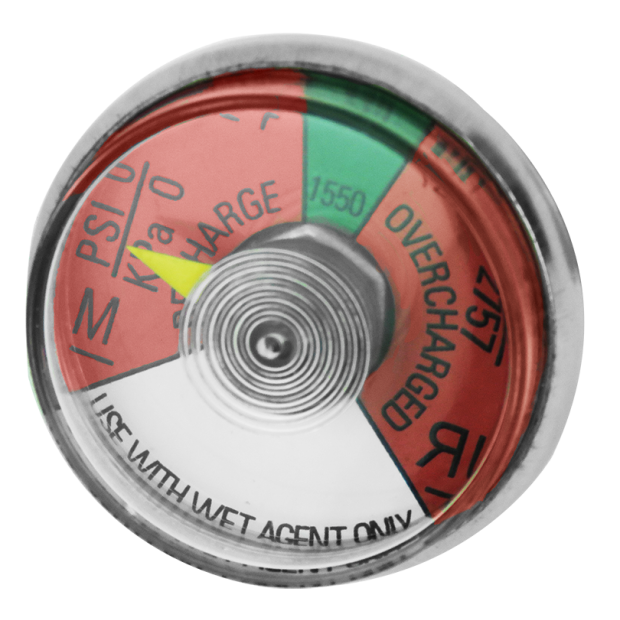

    Mini Pressure Gauge (Spiral Tube Type).png

    Mini Pressure Gauge (Spiral Tube Type) SSG

    The mini pressure gauge is commonly applied in limited space with affordable price. It is suitable for liquid and gas pressure measurement that compatible with connection’s material.
  • Read More
    All Stainless Steel Steam Pressure Gauge.png

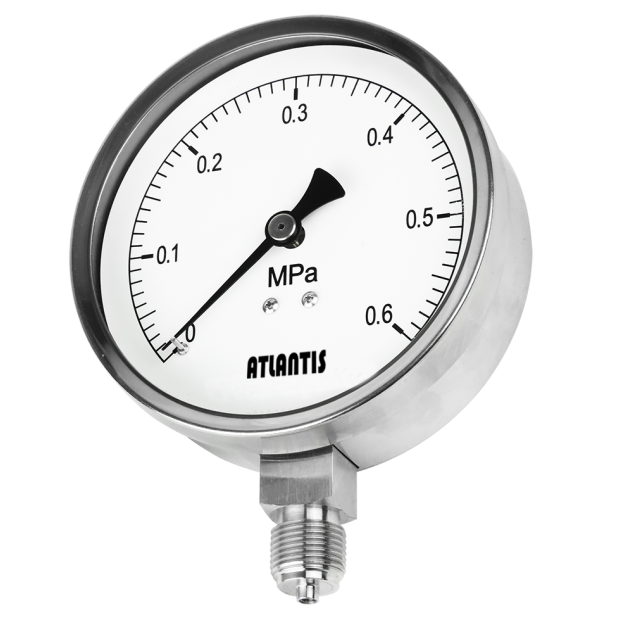

    All Stainless Steel Steam Pressure Gauge SPG-SUS

    SPG-SUS All stainless steel pressure gauge is suitable for measuring the steam pressure in the boiler or water tank, can accurately measure the boiler or tank vapor pressure value.
  • Read More
    MP-SC-L _正面.png

    Stainless Steel Case Micro Pressure Gauge (Liquid-filling Type) MP-SC-L

    MP-SC-L micro pressure gauge filled with liquid to provide superior vibration performance and longer service life.
  • Read More

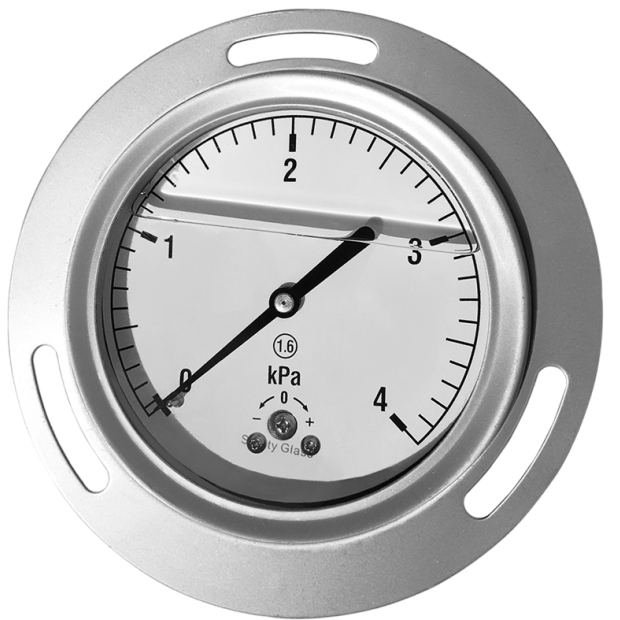

    All Stainless Steel Micro Pressure Gauge (Liquid-filling Type) MP-SUS-L

    MP-SUS-L all stainless steel micro pressure gauge filled with liquid, providing excellent anti-vibration performance with long service life.
  • Read More

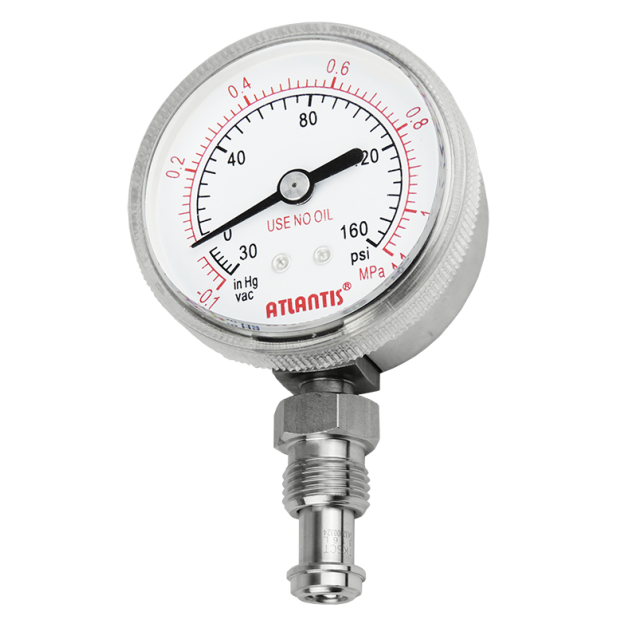

    High Purity Pressure Gauge HCPG

    It adopts vacuum welding, the airtightness is up to 1 x 10-9 Pa·m3/s. It is especially suitable for high cleanliness requirement industry: semiconductor, medical technology, and biotechnology engineering industry.
  • Read More

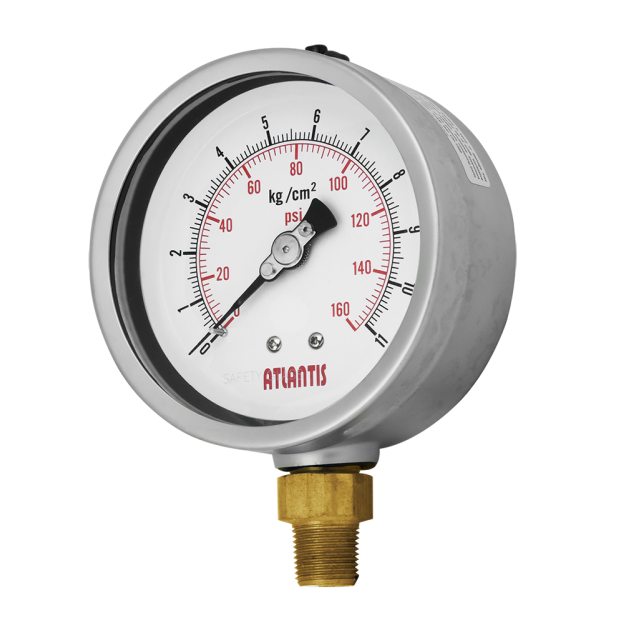

    Stainless Steel Case Shockproof Pressure Gauge SP-SC

    This pressure gauge uses stainless steel dampened movement with excellent shockproof effect. Applicable for vibration but non-oil environment.
  • Read More

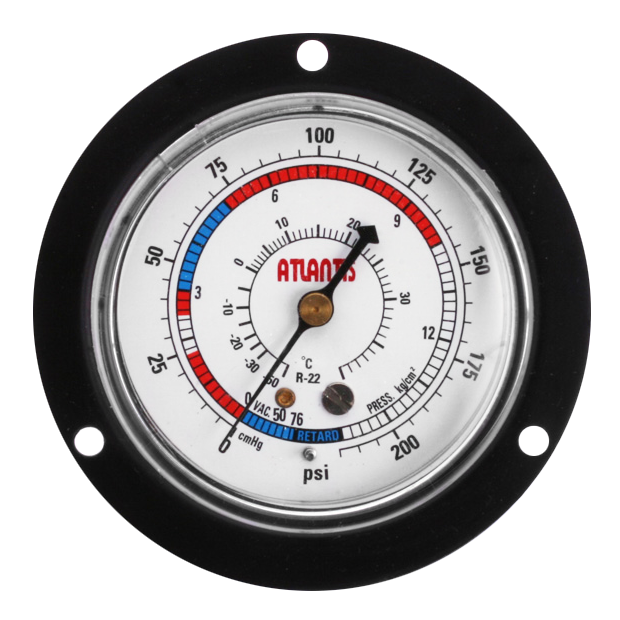

    Black Steel Case Refrigeration Gauge F-EPG

    F-EPG mechanical refrigeration pressure gauge adopts special dial face with various refrigerants application. It has widely applied in a variety of refrigeration systems pressure measurement, such as air conditioning, refrigerant filling equipment.
  • Read More

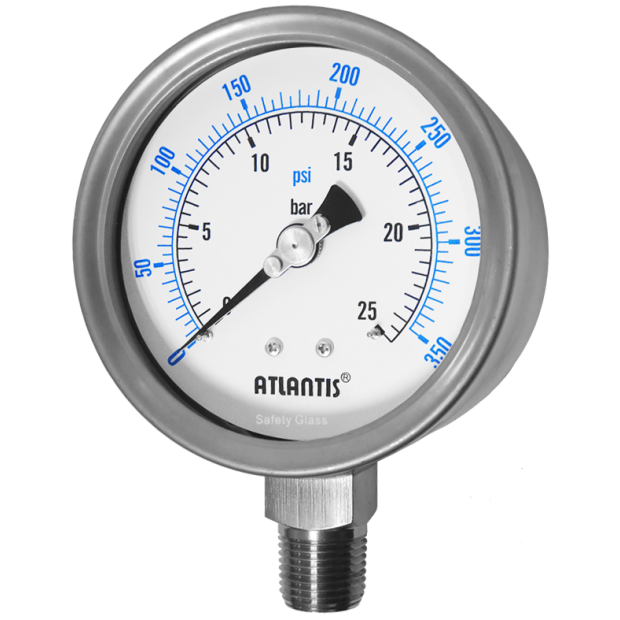

    All Stainless Steel Safe Pattern Pressure Gauge (with Blow- Out Back) SF-SUS

    All Stainless Steel Safe Pattern Pressure Gauge (with Blow-Out Back)
    Model: SF-SUS

    Feature
    ■ OEM service
    ■ Welded connection, maximum fluid temperature can up to 200℃
    ■ All stainless steel material
    ■ Install a blow-out back, specially design for industrial applications
    ■ Accuracy ±1%
    ■ Long service life

    Main Specifications
    ▼Size
    4”,6”
    ▼Window
    Safety glass, O-ring sealed
    ▼Installation type
    Bottom mount (A) /
    Bottom mount with flange (B)/
    Back mount (Eccentric thread) (ADE) /
    Back mount with flange (Eccentric thread) (BDE)/
    Back mount with U-Clamp (Eccentric thread) (UDE)/
    Back mount with flange and U-Clamp (Eccentric thread) (UBDE)
    ▼Pressure connection
    Material: SS316
    Welded connection/O-ring sealed
    Thread size: 1/4”,3/8”,1/2”
    Thread type: BSPT, NPT, PF
    Other thread specification are available upon request
    ▼Pressure range
    Gauge pressure▼
    0…0.6 to 1000bar
    Negative pressure▼
    -1…0bar
    Compound pressure▼
    -1…0 to 20bar
    ▼Applicable fluid
    Liquid and gas that compatible with stainless steel
    ▼Liquid-filling
    Glycerin/Silicone oil
    ▼Ambient temperature
    Dry, silicone oil: -40°C to +60°C
    Glycerin: +10°C to +60°C
    ▼Fluid temperature
    Dry: +120°C
    Glycerin: +100°C
    Silicone oil: +200°C
    ▼Temperature drift
    Every ±12 °C
    max. error: ±0.3% F.S
    ▼Protection level
    IP54 (Standard) / IP65 (Option)

    Other Specifications
    ▼Ring
    Stainless steel
    ▼Ring mount
    Inside bayonet (Option: Outside bayonet)
    ▼Case
    SS304
    ▼Pointer
    Aluminum with black enamel
    ▼Dial face
    Blue and black scale
    Pressure unit, scale, & color can be customized
    ▼Measuring elements
    Bourdon tube
    Material: SS316
    ▼Protection design
    Blow-out back
    ▼Movement
    Stainless steel
    ▼Accuracy
    ±1%
    ▼Operating pressure
    Stabilization 3/4* full scale
    Fluctuation 2/3* full scale
    Impulse 1* full scale

    Downlaod
  • Read More
    All Stainless Steel High Pressure Gauge.png

    All Stainless Steel High Pressure Gauge HPPG-SUS

    All Stainless Steel High Pressure Gauge
    Model: HPPG-SUS

    Features
    ■ OEM service
    ■ Specially design for high pressure measurement Maximum pressure measurement: 4000bar
    ■ Welded connection, maximum fluid temperature can up to 200℃
    ■ All stainless steel design
    ■ German Bourdon tube BK (bachmaier-klemmer) is available (optional)

    Main Specifications
    ▼Size
    4”, 6”
    ▼Installation type
    Bottom mount (A) /
    Bottom mount with flange (B) /
    Back mount (eccentric thread) (ADE) /
    Back mount with flange (eccentric thread) (BDE) /
    Back mount with U-Clamp (Eccentric thread) (UDE) /
    Back mount with flange and U-Clamp (Eccentric thread) (UBDE)
    ▼Window
    Safety glass
    O-ring sealed
    ▼Pressure connection
    Material: SS316
    Welded connection
    Size: 1/4”, 3/8”, 1/2”
    Type: BSPT, NPT, PF
    Other thread specifications please specify before order
    ▼Pressure range
    0…400 to 4000 bar
    ▼Applicable fluid
    Liquid and gas that compatible with SS 304
    ▼Ambient temperature
    Dry & Silicone oil filled:
    -40°C to +60°C
    Glycerin filled:
    -20°C to +60°C
    ▼Fluid temperature
    Dry: +120°C
    Glycerin filled: +100°C
    Silicone oil filled: +200°C
    ▼Temperature drift
    Every ±12 °C
    max. error: ±0.3% F.S
    ▼Protection level
    IP54 (standard) / IP65 (option)

    Other Specifications
    ▼Ring
    Stainless steel
    ▼Ring mount
    Inside bayonet
    ▼Case
    SS 304
    ▼Pointer
    Aluminum with black enamel
    ▼Dial face
    Blue and black scale
    Pressure unit, scale & color can be customized upon request
    ▼Measuring elements
    Bourdon tube
    Material: SS316
    ▼Additional protection (option)
    Blow-out back
    ▼Movement
    Stainless steel
    ▼Accuracy
    1%
    ▼Operating pressure
    Stabilization: 3/4* full scale
    Fluctuation: 2/3* full scale
    Impulse: 1* full scale
