Probe Humidity and Temperature Transmitter THT-S16

Probe Humidity and Temperature Transmitter THT-S16

THT-S16 series transmitter adopts metal probe to measure ambient temperature (-40⋯85℃) and humidity (0⋯100%RH), which is suitable for industrial application such as environment, cooling, and ventilation control with affordable price.
DETAIL

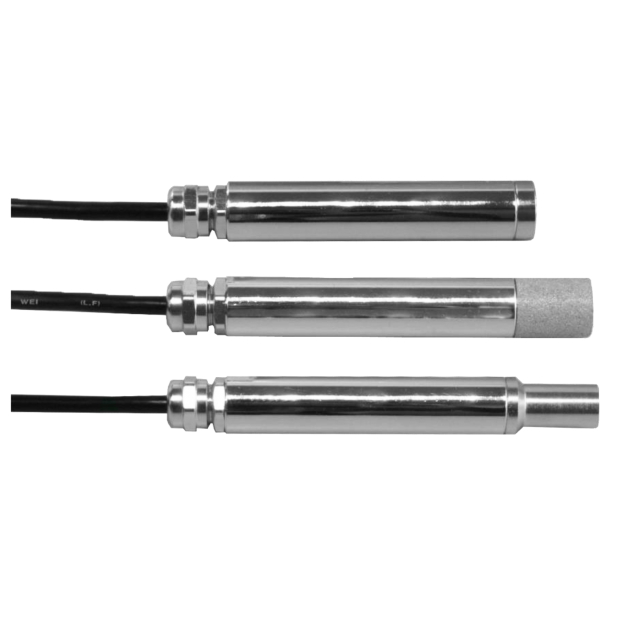

Probe Humidity and Temperature Transmitter
Model: THT-S16


Introduction
THT-S16 series transmitter adopts metal probe to measure ambient temperature (-40⋯85℃) and humidity (0⋯100%RH), which is suitable for industrial application such as environment, cooling, and ventilation control with affordable price.

Features
■ Economic and affordable price with accurate and stable performance
■ Humidity measurement range 0⋯100%RH Temp measurement range -40⋯85℃
■ Mechanical stress resistance metal probe, reducing electromagnetic interference
■ The 2-wire analog output with Psychometric calculations (option)
■ RS485 Modbus support float point and integer format with metric/imperial unit
■ Reverse/overcurrent/short circuit protection

Main Specifications
▼Body dimension
95 x 16mm
▼Humidity measurement range
0…100% RH
▼Temp. measurement range
-40…85℃
▼Probe
Material-Nickel-plated brass
Pressure resistance-10bar
▼Cable
Material: shield PVC
Length: 2M
Other cable length available upon request
▼Psychometric calculations (option)
(Td) Dew point temp.
(Tf) Frost point temp.
(Tw) Wet blub temperature
(E) Water vapor pressure
(R) Mixing ratio
(A) Absolute humidity
(S) Enthalpy
▼Operating temperature
-40…85℃ (-40…185℉)
▼Case protection level
IP24
▼Electromagnetic interference protection
Comply with EMC standard
EN61326-1
Industrial environment

Other Specifications
▼Signal output
Analog output (standard)▼
0-1V (2-wire)
Digital output (option)▼
RS485 Modbus
▼Humidity accuracy (@25℃) (including non-linearity, hysteresis and repeatability)
Level A▼
1.5% RH (20…80%RH)
±2%RH (0…20/80...100%RH )
Level B▼
2%RH (20…80%RH)
±3%RH (0…20/80...100%RH )
Level C▼
±3% RH (20…80%RH)
▼Temperature accuracy (including non-linearity, hysteresis and repeatability)
±0.7℃ (@-40…5℃)
±0.3℃ (@5…60℃)
±0.9℃ (@60…85℃)
▼Dew point
±5℃ (@25℃)
▼Stability
Humidity: 0.5%RH/year
Temperature: 0.04℃/year
▼Response time (@63% signal)
Humidity: 5 secs (33-75%RH)
Temp: 1 min (15 to 45℃)
▼Power supply
5VDC±5%
▼Power consumption
(@25℃, V+24VDC)
35mA
▼Load resistance
Current output: < 500Ω
