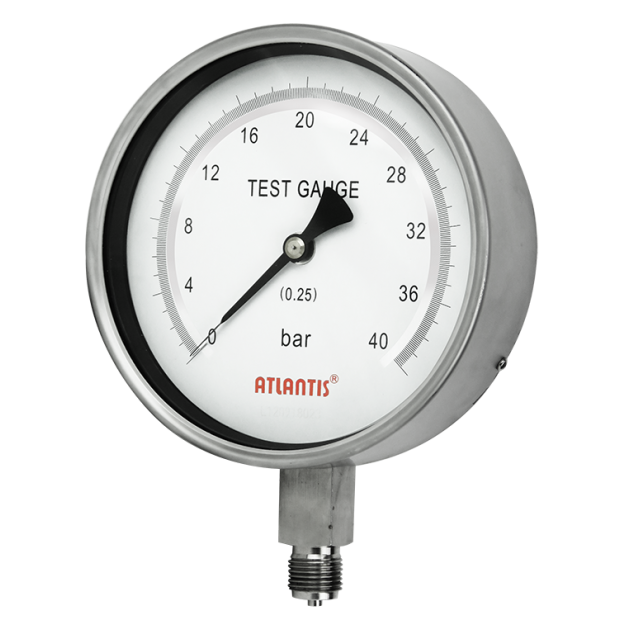

All Stainless Steel Precision Test Pressure Gauge TPG-SUS

All Stainless Steel Precision Test Pressure Gauge TPG-SUS

TPG series precision test pressure gauge features high accuracy with affordable price, which is suitable for calibration authority or laboratory that need high accuracy pressure measurement.
DETAIL
All Stainless Steel Precision Test Pressure Gauge
Model: TPG-SUS


Introduction
TPG series precision test pressure gauge features high accuracy with affordable price, which is suitable for calibration authority or laboratory that need high accuracy pressure measurement.

Features
■ OEM service
■ Stainless steel case pressure gauge with high accuracy performance
■ Accuracy can up to ±0.16%F.S.
■ Pointer adopts knife edge design, indicating the reading accurately

Main Specifications
▼Size
6”, 8”
▼Installation type
Bottom mount (A)/Bottom mount with flange (B)
▼Window
PC
Option: Tempered glass / Safety glass
With rubber O-ring sealed
▼Pressure connection
Material: SS304, SS316
With rubber O-ring sealed
Size: 3/8”, 1/2”
Type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…0.6 to 1000 bar
Negative pressure▼
-1…0bar
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with Stainless steel
▼Ambient temperature
5°C to 40°C
▼Fluid temperature
+40°C
▼Temperature error
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP54

Other Specifications
▼Ring
Stainless steel
Screw fixed
▼Case
SS304
▼Pointer
Aluminum with black enamel
Knife edge design
▼Dial face
Special dial face for precision readings
External zero adjustment
Pressure unit, scale, color can be customized upon requests
▼Measuring elements
Bourdon tube
Material: SS304 / SS316 / 50 chromium-vanadium steel
▼Movement
Copper alloy
▼Accuracy
±0.4%F.S. (Standard) / ±0.25%F.S. (Standard) / ±0.16%F.S. (Option: available for size 8”)
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
