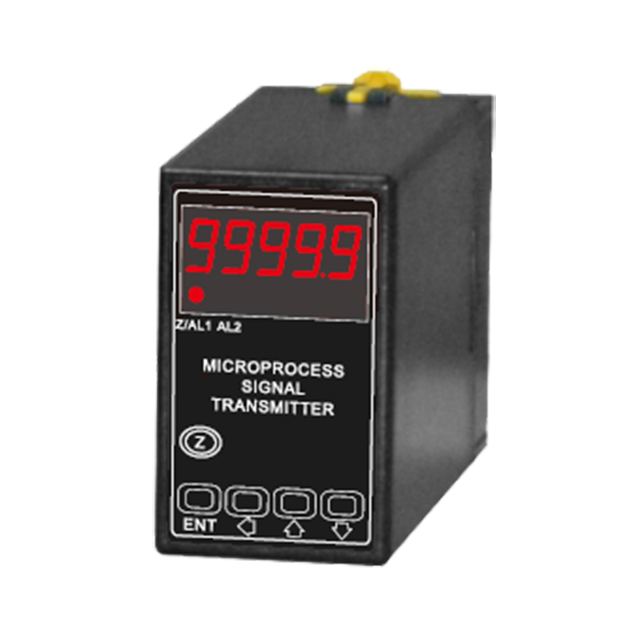

Signal Isolated Transmitter (5-digit analog input display type) SIT-5AID
Signal Isolated Transmitter (5-digit analog input display type) SIT-5AID
■ Measuring AC/DC voltage, current, potentiometer, resistance, transmitter, PT-100, load cell and other signals are available
■ Highlight 0.4”5-digit LED display, decimal point can be set by user
■ Surge test of AC 2000V/min between any 2 of input / output / power
■ Output corresponding range can be set by user
■ Case material adopts flameproof PC for high stability and security
■ Highlight 0.4”5-digit LED display, decimal point can be set by user
■ Surge test of AC 2000V/min between any 2 of input / output / power
■ Output corresponding range can be set by user
■ Case material adopts flameproof PC for high stability and security
DETAIL
Model: SIT-5AID
Features
■ Measuring AC/DC voltage, current, potentiometer, resistance, transmitter, PT-100, load cell and other signals are available
■ Highlight 0.4”5-digit LED display, decimal point can be set by user
■ Surge test of AC 2000V/min between any 2 of input / output / power
■ Output corresponding range can be set by user
■ Case material adopts flameproof PC for high stability and securit
Main Specifications
▼Size
121.1 x 50 mm
▼Installation type
Socket／Plug-in
▼Operating ambient temp.
-0°C to +60°C
▼Storage temperature
-10°C to 70°C
▼Ambient humidity
20-90% R.H. (non-condensing)
▼Storage temperature
20-90% R.H. (non-condensing)
▼Temperature coefficient
100ppm/℃ (0~60℃)
▼Temperature drift
<±0.015%F.S./year @25°C
Other Specifications
▼Accuracy
For DC／potentiometer／resistor／PT-100 load cell: ±0.1% F.S., ±1-digit
For AC: ±0.2%F.S., ±1-digit
▼Display
Highlight red LED
Type-high 10.16mm (0.4”)
▼Sampling time
16 cycles/sec.
▼Display range
-19999~99999
Zero adjustment range: ±9999
Span adjustment range: ±9999
▼Overload display
doFL / ioFL or -doFl / -ioFL
▼Polarity indication
Display "-" when input signal is opposite
▼Parameter setting
Push buttons
▼Data memory mode
EEPROM
▼Output ripple
≦±0.1%F.S.
▼Isolation
Input／output／power／case
▼Power supply
AC/DC 100~240V；
AC/DC 22~60V
▼Analog output
Resolution: 15 bit
Response time:
<250ms (0-90%)
Output capacity:
Voltage output <20ma
Current output <10V
▼Surge test
2KVac／min. (Input／Power)
▼Insulation resistance
>100MΩ with 500Vdc
▼Input impedance
Voltage:
>2V: 20KΩ/V
≦2V: >200MΩ
Current:
≧0.2A: 100mV
＜0.2A: 1V
▼Other requests (Option)
Third party notarized documents
Inspection report
