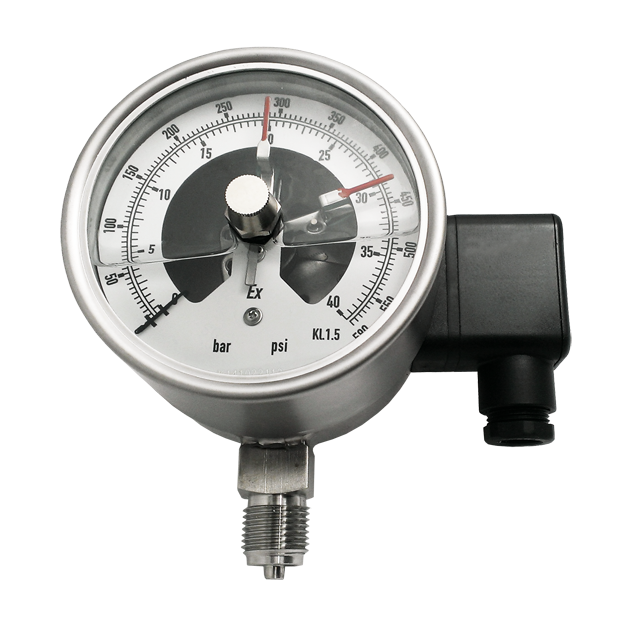

Explosion-proof Micro Pressure Gauge with Switch Contact ECI
Explosion-proof Micro Pressure Gauge with Switch Contact ECI
The ECI contact pressure gauge uses a Bourdon tube as its measuring element, which can be made of different materials depending on the measured medium. It is suitable for the micropressure measurement of viscous media. By connecting or disconnecting the contacts between the instrument pointer and the set pointer, it controls the switching of circuits in the system to achieve automatic control and alarm functions.
DETAIL
Model: ECI
Introduction
The ECI contact pressure gauge uses a Bourdon tube as its measuring element, which can be made of different materials depending on the measured medium. It is suitable for the micropressure measurement of viscous media. By connecting or disconnecting the contacts between the instrument pointer and the set pointer, it controls the switching of circuits in the system to achieve automatic control and alarm functions.
Features
■ OEM service
■ Adopts SPST explosion-proof inductive switch Contact for 4”/6” pressure gauge
■ Non-contact type switch, comply with Explosion-proof level Exib II CT6
■ Specially designed for measuring micro pressure
■ Liquid-filled available, protection level IP65
Main Specifications
▼Size
4”, 6”
▼Window
Safety glass
▼Pressure connection
Material: SS316
Welded / O-ring sealed
Thread size: 1/4”,3/8”,1/2”
Thread type: BSPT, NPT, PF
▼Pressure range
Gauge pressure▼
0…100kg/cm2 (or specified up to 400 kg/cm2)
Negative pressure▼
-760mmHg…0
Compound pressure▼
0…±0.6kg/cm2
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Ambient temperature
-20°C to +60°C
▼Fluid temperature
+100°C
▼Liquid-filling
Glycerin
(For pressure range over 2500mmH2O)
▼Temperature drift
20°C as standard, every ±8°C
max. error: ±0.5% F.S.
▼Explosion-proof level
Exib II CT6
Other Specifications
▼Ring material
Stainless steel
▼Ring mount
Outside bayonet
Adjustable set point
▼Case material
SS 304
▼Wiring type
Concealed magnet base with junction box
▼Switch contact type
Inductive Switch SPST
(NC／NO)
▼Contact function
Single contact N.O. (1a)／
Single contact N.C. (1b)／
Double contacts N.O.+N.C. (1a1b)／
Double contacts N.C.+N.O. (1b1a)／
Double contacts N.O.x2 (2a)／
Double contacts N.C.x2 (2b)
For more information please refer to single / double contacts wiring
▼Number of contact
SPSTx1／SPSTx2／SPSTx4
▼Contact material
80% silver, 20% nickel, 10μm gold-plated (>110V)
Gold (≦36V)
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Bourdon
Material: SS316
▼Protection design (option)
Install a blow out back (Only available for 4”)
▼Movement
Stainless steel
▼Gauge accuracy
±2.5%F.S. (standard)
±1.6%F.S. (option)
±1.0%F.S. (option)
▼Set point accuracy
±4.0%F.S.
▼Max operating voltage
380VAC／220VDC
▼Max current
1A
▼Contact capacity
30VA
▼Operating pressure
Stabilization: 3/4* F.S.
Fluctuation: 3/4* F.S.
Impulse: 1* F.S.
