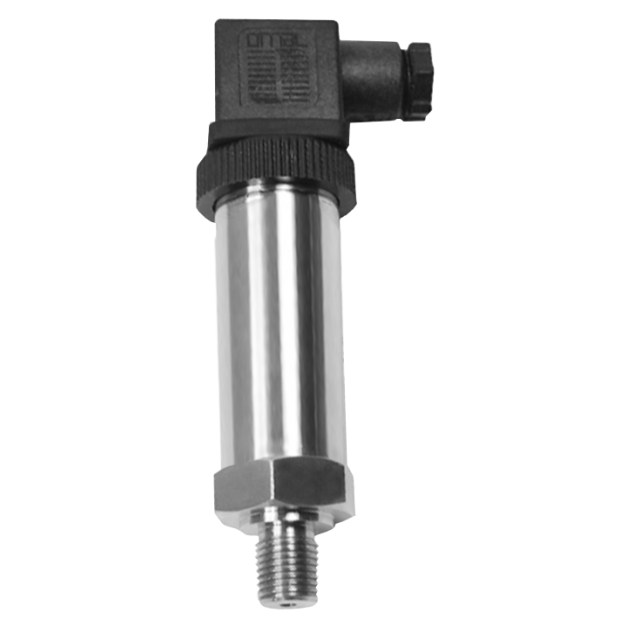

Compact Pressure Transmitter AT-PT183
Compact Pressure Transmitter AT-PT183
AT-PT183 compact pressure transmitter adopts high accuracy and stability pressure senor. Its features include low temperature drift, high anti-interference and anti-surge technology. The compact design with all stainless case ensuring its high reliability. It has been widely applied in high interference environment such as frequency conversion, hydraulic and pneumatic pressure system.
DETAIL
Model: AT-PT183
Introduction
AT-PT183 compact pressure transmitter adopts high accuracy and stability pressure senor. Its features include low temperature drift, high anti-interference and anti-surge technology. The compact design with all stainless case ensuring its high reliability. It has been widely applied in high interference environment such as frequency conversion, hydraulic and pneumatic pressure system.
Features
■ OEM service
■ Low temperature drift <±0.01%F.S.
■ Non-polarity connection
■ Wide measurement range: max 3000bar, min. 0.2kPa
■ Continuous zero and span external adjustment
Main Specifications
▼Pressure type
Gauge pressure
Compound pressure
Absolute pressure
▼Process connection
Material:
SS316 / SS304 / Hastelloy C
M20 x 1.5*
G1/2”*
1/2”NPT
Clamp connection
(measurement range ≤ 1MPa)
*For inner hole please refer to how to order table
▼Electronical connection
Hirschmann conntector (Std.)
Hirschmann with cable outlet
Cable outlet
Aviation plug
▼Pressure range
Please refer to pressure type and pressure range table
▼Applicable fluid
Gas and liquid that compatible with stainless steel
▼Operating temperature
-40~+75℃
▼Protection level
IP65
▼Proof design (Option)
Explosion-proof level:
Exd II CT5
Flameproof level: Exd II BT5
Anti-impact design
Lightning-proof class anti surge
Other Specifications
▼Housing material
SS 304
▼Diaphragm material
Silicon chip / Piezoresistive
ceramic / Ceramic capacitor / Silicon-on-sapphire (*1)
▼Power supply
15~36VDC
▼Output signal
4~20mA / 0~10V / 0~5V / 1~5V
▼Screen display (Option)
For more information please refer to how to order table
▼Accuracy
±0.1% (*2)/±0.2%/±0.5% F.S.
▼Stability
<0.2%F.S./year
▼Temperature drift
<±0.01%F.S./℃
(Option: 0.005%F.S./℃)
▼Compensated temperature
-10~+70℃
▼Operating pressure
1.5~3*F.S.
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
(*1): Silicon-on-sapphire diaphragm can only select Φ3mm inner hole connection.
(*2): To achieve 0.1% accuracy, choose high stability silicon chip or ceramic capacitor as diaphragm material is required
