Differential Micro Pressure Transmitter DMPT-300 Series

Differential Micro Pressure Transmitter DMPT-300 Series

DMPT-300 series differential micro pressure transmitter is mainly used in air micro pressure measurement, wind velocity/pressure measurement & control, leakage detection for HVAC, cleanroom, boiler or power plant field application.
DETAIL

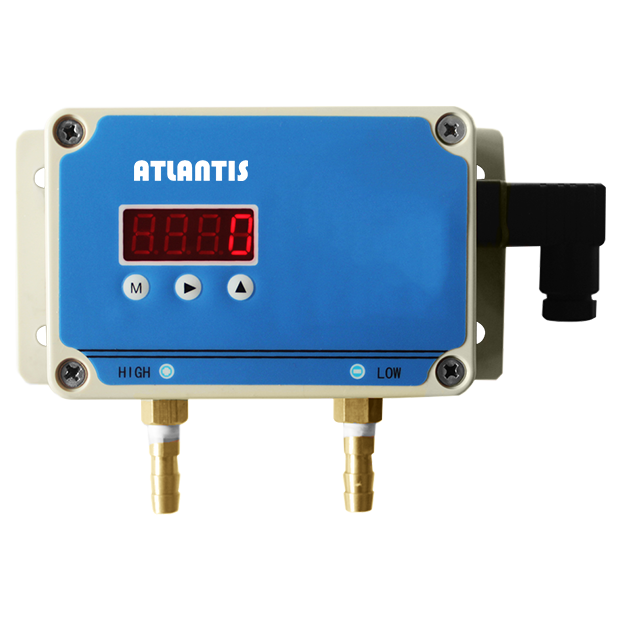

Differential Micro Pressure Transmitter
Model: DMPT-300 Series


Introduction
DMPT-300 series differential micro pressure transmitter is mainly used in air micro pressure measurement,  wind velocity/pressure measurement & control, leakage detection for HVAC, cleanroom, boiler or power plant field application.

Features
■ OEM service
■ Specially designed for air micro pressure (positive/negative/differential) measurement
■ Humid/turbid air media measurable
■ High accuracy & stability
■ Great anti-interference performance
■ LED field display available upon request

Main Specifications
▼Type
4-digit LED display▼
DMPT-300-4ED
No display▼
DMPT-300
▼Installation type
Bottom mount
▼Pressure connection
Ø8 barb thread/M8x1 thread
Material:
Brass (standard)/Aluminum alloy (option)
▼Pressure range
0…60Pa~200kPa
For details please refer to differential pressure range table
▼Electrical connector
Hirschmann connector
Waterproof connector (option)
▼Applicable fluid
Non-corrosive gas
▼Ambient temperature
-20…70℃
▼Ambient humidity
≤85% R.H.
▼Temperature drift
Every 10℃ max. error ±0.3%

Other Specifications
▼Case
ABS
▼Power supply
12…36 VDC
▼Output signal
4~20mA
▼Pressure unit
Please refer to unit-code table
▼Accuracy
0.2% (@>35kPa)
0.5% (@1~35kPa)
1.0% (@<1kPa)
▼Stability
±0.8%F.S./year
▼Overpressure
3x F.S. (0…160kPa)
500 kPa (160…200kPa)
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
