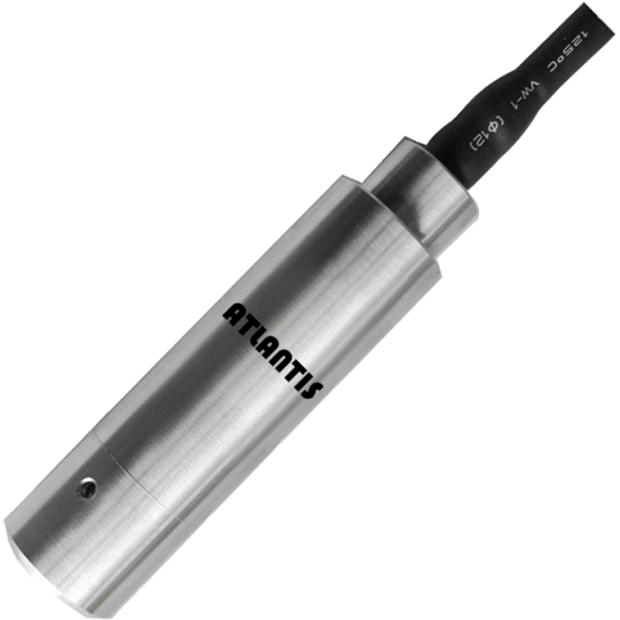

Integrated Level Transmitter LPT

Integrated Level Transmitter LPT

LPT integrated level transmitter adopts high quality SS316L diaphragm pressure sensor and features high accuracy and strong anti-corrosive performance, which has been used in various industrial process level control.
DETAIL
Integrated Level Transmitter
Model: LPT


Introduction
LPT integrated level transmitter adopts high quality SS316L diaphragm pressure sensor and features high accuracy and strong anti-corrosive performance, which has been used in various industrial process level control.

Features
■ OEM service
■ Integrated structure
■ Wide measurement range: 0⋯1 ~ 500mH2O
■ Temperature signal output
■ Compact design with easy installation
■ High accuracy and stability
■ Strong anti-corrosive performance
■ Lightning-proof, anti-interference and anti-condensation design

Main Specifications
▼Electrical connection
Cable outlet
Cable length: 5M (Standard)
Custom length available upon request
▼Measurement range
0…1 ~ 500mH2O
▼Applicable fluid
Liquid that compatible with SS316L
▼Operating temperature
-20 to 85℃
▼Protection level
IP 68
▼Application
Level measurement
Petroleum, chemical, electrical industry
Hydraulic / pneumatic system
Energy and water treatment
Auto control equipment
Industrial process control

Other Specifications
▼Case
SS321 (1Cr18Ni9Ti)
▼Output signal
4~20mA (2-wire)
With Temperature signal output
▼Measuring elements
Diaphragm
Material: SS316L
▼Temperature compensation
0~60℃
▼Power supply
12~36VDC (standard 24V)
▼Zero & span temp. drift
±0.02% F.S.
▼Accuracy (include non-linearity,
hysteresis and repeatability)
≤ 0.5% F.S. (Standard)
≤ 0.1/0.25 F.S. (Option)
▼Stability
≤ 0.25% F.S.
▼Overpressure
3*F.S.
▼Response time
≤ 1ms
▼Service life
> 9,000,000 cycles
▼Weight
120g
