Automatic Pressure Calibrator APC-761

Automatic Pressure Calibrator APC-761

Functions of APC-761 automatic pressure calibrator has cover measuring and generating pressure automatically and supporting instruments with HART. It adopts full intelligent control, generally use for pressure gauge and micro differential pressure gauge. Special design for portable, pipeline protection, and instrument connection part to enhance safety and efficiency, especially for calibration of digital instruments such as pressure transmitter and switch. It is also suitable for blood pressure gauge and barometer.

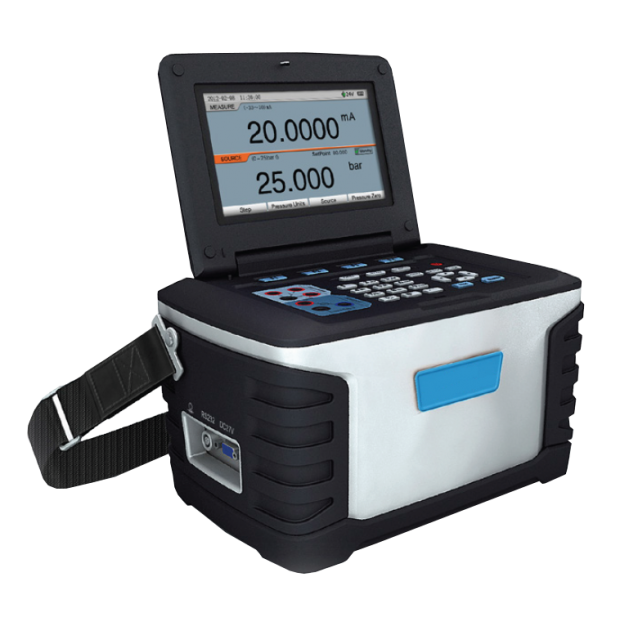

Automatic Pressure Calibrator
Model: APC-761


Functions of APC-761 automatic pressure calibrator has cover measuring and generating pressure automatically and supporting instruments with HART. It adopts full intelligent control, generally  use for pressure gauge and micro differential pressure gauge. Special design for portable, pipeline protection, and instrument connection part to enhance safety and efficiency, especially for  calibration of digital instruments such as pressure transmitter and switch. It is also suitable for blood pressure gauge and barometer.

■ Dual pressure display meter
■ Accuracy: 0.02% F.S.
■ Portable design, weighs only 5.6kg
■ Multiple task management function-Supports instrument information management, automatic calibration process, automatic data analysis, quick saving of verification results, downloadable  tasks, uploading data, and auto step
■ Easy to use-User friendly interface, graphic management menu, graphical interface, automatic leak detection
■ Multi-protection-Up to 30V misuse protection on any two sockets
■ Built-in filter and liquid trap with venting system prevents contamination of the calibrator
■ Pipeline protection-Special design can protect the body from obstructions and air leakage
■ RS232 connector can be connected with computer
■ External pressure generator available
■ Full range temperature automatic compensation, built-in automatic pressure generator.
■ Recharge lithium battery included

Main Specifications
296 x 186 x 180 mm
▼Pressure connection
1/4”NPT female
1/4”BSP female
Material: Stainless steel
▼Electrical connector
0.156”(4mm) banana socket
▼Pressure type
Gauge pressure
▼Pressure range
Automatically generate pressure range -0.9…0 to 25bar
Pressure module 1: -0.9…0 to 2.5bar
Pressure module 2: 0 to 25bar
▼Operating pressure
0 to 50℃
▼Storage temperature
-20 to 60℃
▼Storage humidity
< 90%R.H. (non-condensing)
External pressure manifold x1
110V/220V External power adapter x1
Rechargeable lithium battery x1
Test leads for calibrator 2 sets
Short circuit cable 1 set
Carrying case x1
O-ring x20
Manual x1
3mm Allen wrenchx1
Hose x1
Test report x1
Warranty sheet x1

Other Specifications
▼Screen display
7”Color LCD screen (800 x 480mm)
▼Display frequency
5 times/sec
Resolution: 4 / 5 / 6-digit display
▼Pressure unit
Pa, kPa, MPa, psi, bar, mbar, inH2O, mmH2O, inHg, mmHg, kgf/cm2
▼Power supply
Built-in rechargeable lithium battery:
25.2V, full battery working time: 8 hours
Recharge time: 3 hours
Power adapter supply: AC110V/220V to DC 27V
Baud rate: 2400, 4800, 9600, 19200, 38400, 87600, 115200 HART communication
▼Storage function
Internal memory stores 200 tasks
Download tasks and upload results
▼Temperature compensated
-10 to 50℃
▼Control stability
▼Pump life
> 100,000 cycles
About 5.6kg
