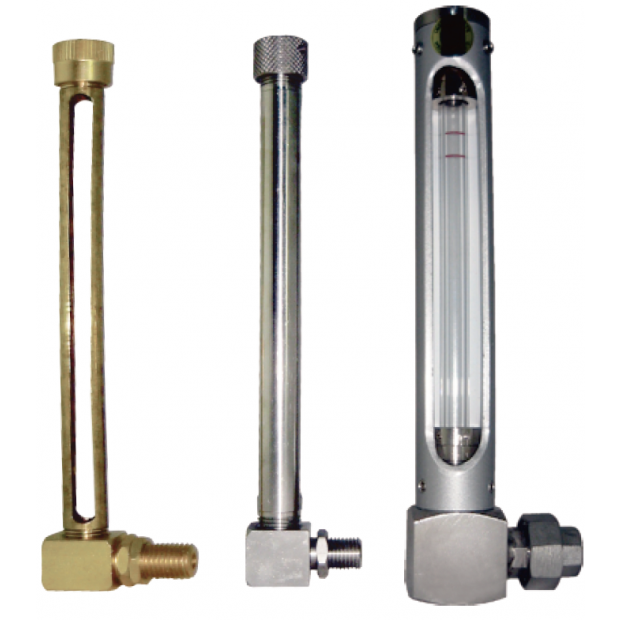

Cylindrical Level Gauge CLG-Series
Cylindrical Level Gauge CLG-Series
Features
■ Selectable Height
■ Rugged construction
■ Selectable Height
■ Rugged construction
DETAIL
Model: CLG-Series
Features
■ Selectable Height
■ Rugged construction
Main Specifications
▼Dimension
C: 17 x 20mm
S: 21 x 18mm
R: 34 x 33mm
▼Height
C: 150
S/R: 150 / 200 / 300 / 400
▼Tube Material
Glass / PC / Acrylic
▼Seal Material
Teflon / Neoprene/ Viton
▼Connection Size
1/4”O-ring
▼Connection Type
PS / PT / Hammer Union
▼Applicable fluid
Clean, low viscosity liquids
▼Protection level
IP43
▼Temperature error
Standard:
Calibrated temperature
0.25% error per 4°C.
▼Maximum Pressure
4kg/cm2
▼Maximum Temperature
100℃
Other Specifications
▼Housing
C: Copper
S: SS316
R: Aluminum
▼Filling liquid
Red organic liquid
▼Measuring Principle
Liquid expansion
