Tubular Level Gauge TLG Series
Tubular Level Gauge TLG Series
Features
■ Various material available: Stainless steel/Copper type
■ Selectable height
■ Max media temperature 100℃
■ Various material available: Stainless steel/Copper type
■ Selectable height
■ Max media temperature 100℃
DETAIL
Model: TLG Series
Features
■ Various material available: Stainless steel/Copper type
■ Selectable height
■ Max media temperature 100℃
Main Specifications
▼Type

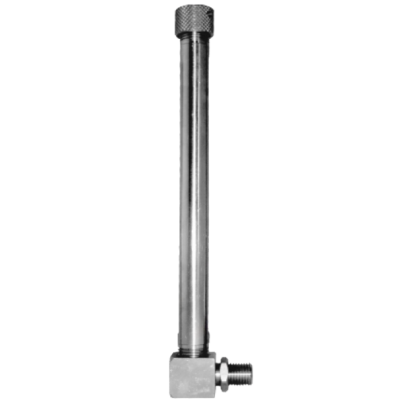

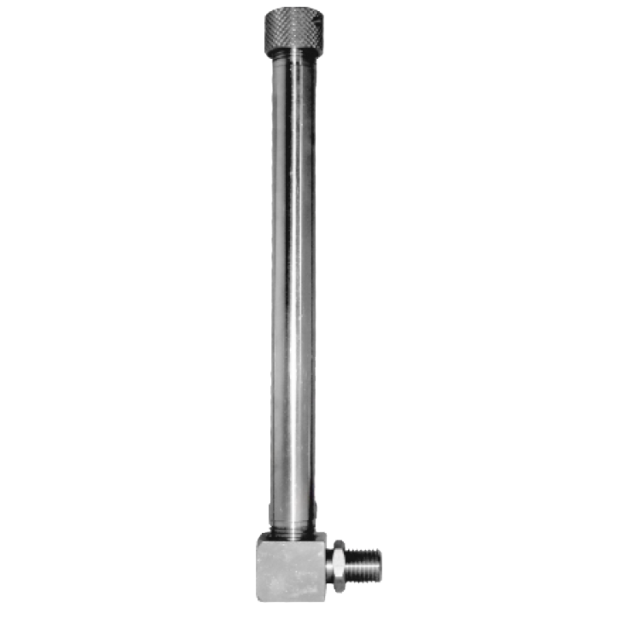

A-Stainless steel 1

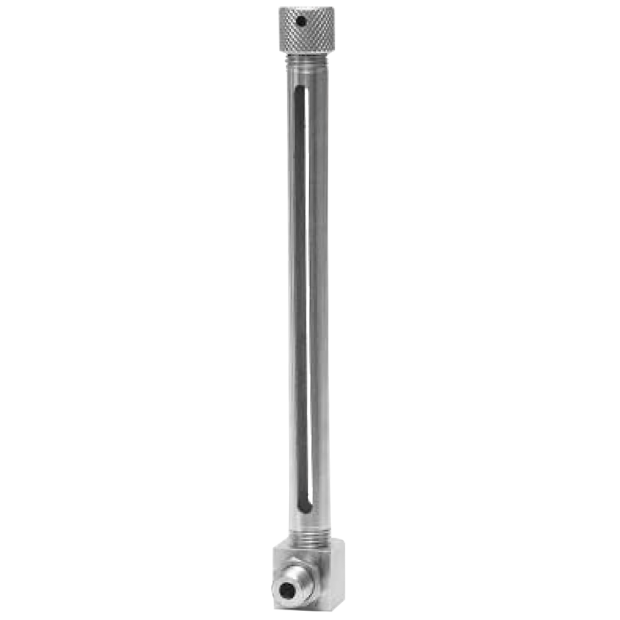

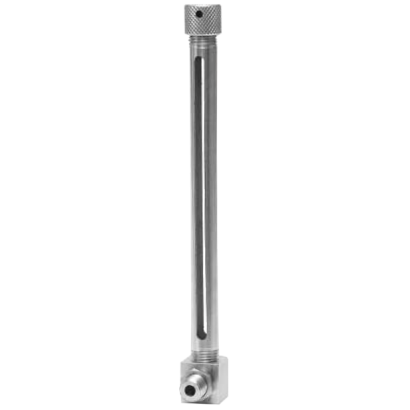

B-Stainless steel 2

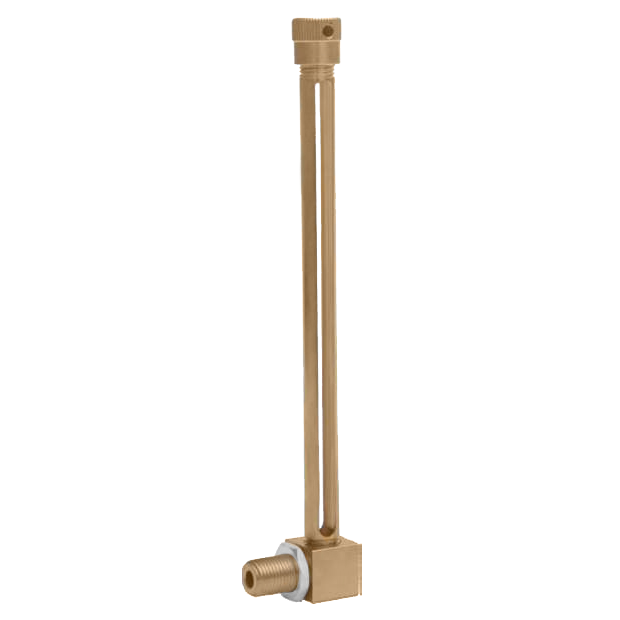

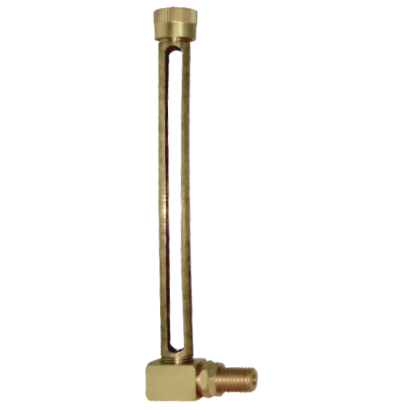

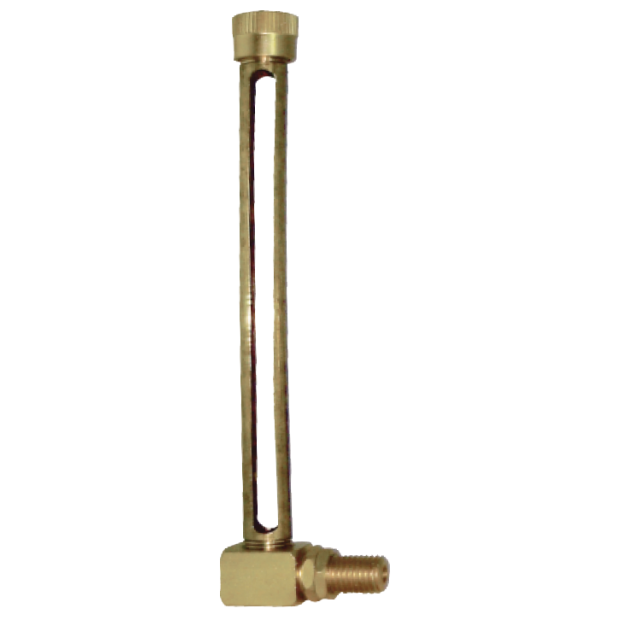

C-Copper alloy
▼Process connection
Thread size: 1/4”, 3/8”, 1/2”
Thread type: PT
▼Height
50/100/150/200mm
▼Applicable fluid
Clean, low viscous liquid
▼Media temperature
+100℃
▼Max operating pressure
4kg/cm2
Other Specifications
▼Tube
Glass/PVC/Acrylic
▼Body
Type A: SS304
Type B: SS316
Type C: Copper alloy
▼Pipe shield
Type A: SS304
Type B: SS304
Type C: Copper alloy
▼Cap
Type A: SS304
Type B: SS305
Type C: Copper alloy
▼Gasket
Neoprene/Viton/Teflon
▼Measuring principle
Liquid expansion
