Diaphragm

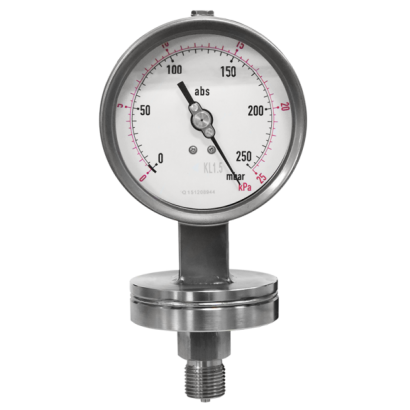

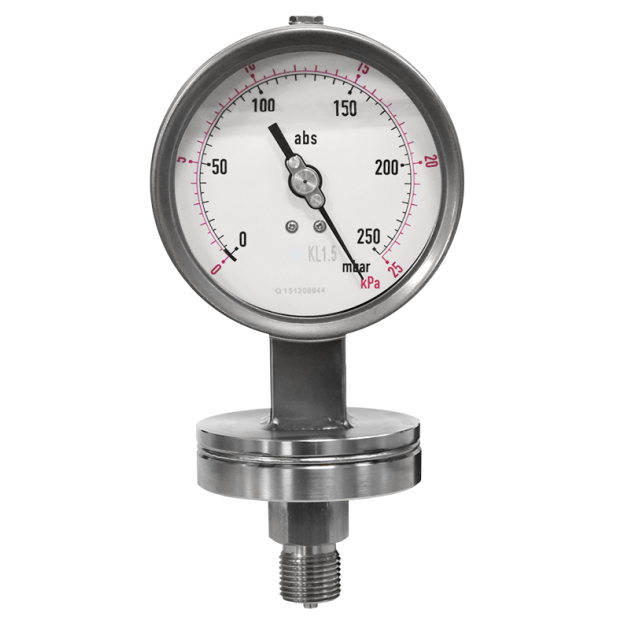

All-Welded Diaphragm SUSD-ABS
DETAIL
Model: SUSD-ABS
Main Specifications
▼Dial diameter
4”, 6”
▼Flange O.D.
75 mm, 130 mm
▼Structure
All-welded design
▼Connection type
1/4”,3/8”,1/2”,3/4”,1”
▼Connection size
BSPT, NPT, PF
▼Pressure gauge
Min. 0.06 bar
Mix. 25 bar
▼Ambient temperature
10℃～60℃
▼Fluid temperature
+100℃
▼Protection level
IP68
▼Accurcacy
±2.5%F.S.
