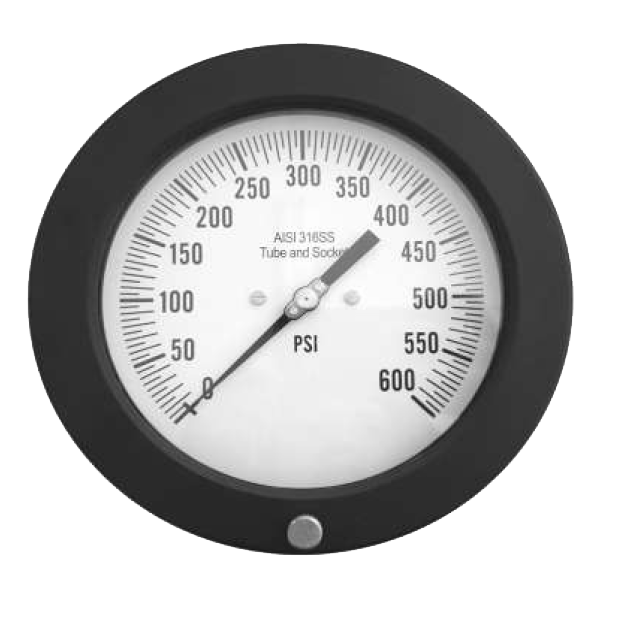

Aluminum Case Solid Front Pressure Gauge SF-0.5AC
Aluminum Case Solid Front Pressure Gauge SF-0.5AC
SF-0.5AC pressure adopts aluminum case with stainless steel measuring system. The solid front design is reinforced at the front, providing a blow-out back safety case design. A solid partition wall between the front of the gauge and the Bourdon tube system will redirect the released energy to the back of the gauge in which the blow-out back of the safety case design redirects any lose parts or media to exit through the back of the gauge.
DETAIL
Model: SF-0.5AC
Introduction
SF-0.5AC pressure adopts aluminum case with stainless steel measuring system. The solid front design is reinforced at the front, providing a blow-out back safety case design. A solid partition wall between the front of the gauge and the Bourdon tube system will redirect the released energy to the back of the gauge in which the blow-out back of the safety case design redirects any lose parts or media to exit through the back of the gauge.
Features
■ OEM Service
■ Case adopts aluminum alloy with stainless steel measuring system
■ In-bulit temperature compensation components
■ Accuracy 0.5%
■ Zero adjustment button on front flange
■ The solid front design, reinforced front and blowout back ensure operator will not be harmed by accidental explosion
■ The high and low point stop plate are installed in pressure gauge to ensure steady operation
■ The aluminum case can be replaced by steel
■ The blow-out back design ensures pressure will not overload
Main Specifications
▼Size
4.5”(157mm with flange), 6”(192mm with flange, for back mount type only)
▼Installation type
Bottom mount with flange (B) / Back mount with flange (BDE)
▼Window
PC (4.5”) / Glass (6”)
▼Pressure connection
Material: SS304
TIG argon arc welding 1/2”NPT
Other thread specifications please specify before order
▼Pressure range
Gauge pressure▼
0…0.6 to 1400bar
Vacuum pressure▼
-1…0bar
Compound pressure▼
-1…0 to 20bar
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
Dry: +120°C
Glycerin: +100°C
Silicone oil: +200°C
▼Protection level
IP 54 (standard) / IP65 (option)
Other Specifications
▼Ring
Aluminum; solid front design
Epoxy coating
▼Case
SS304
▼Pointer
Aluminum with black enamel
Micrometer zero adjustable
▼Dial face
Aluminum, black scale on white background
▼Measuring element
Bourdon tube
Material: SS304
▼Movement
SS304
▼Blow off disc &gasket
Neoprene
▼Accuracy
0.5%
▼Operating pressure
75% of max. scale value
▼Overpressure
≤ 100bar: 125% of max. scale value
100 to 600bar: 115% of max. scale value
600 to 1600bar: 110% of max. scale value
