Mechanical Pressure Switch (High Contact Rating Type)

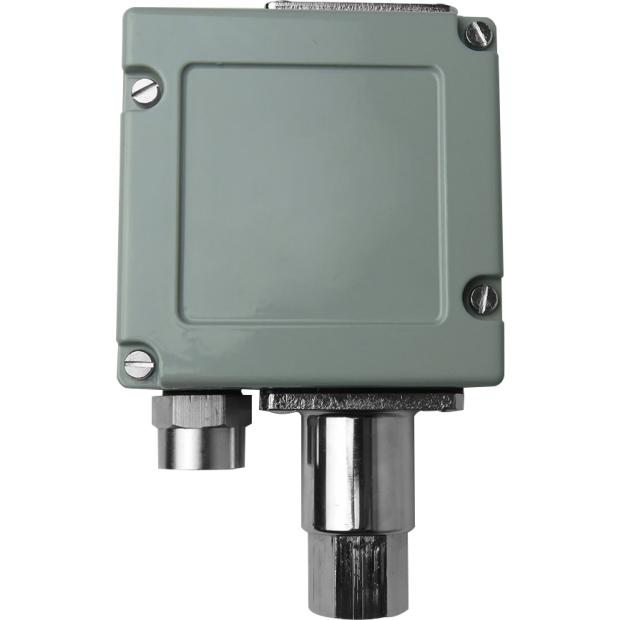

Model: AT100-7D


Introduction
AT100-7D pressure switch adopt SS316L bellow pressure sensor, which can apply to non-corrosive media  such as neutral gas and liquid pressure monitor and control.

Features
■ OEM service
■ Adjustable set point range -0.1⋯0~ 8 MPa
■ Pressure sensor adopts SS316L bellow
■ Adjustable dead band types are available
■ SPDT and 2 CKT DB micro switch
■ Protection level IP65

Main Specifications
▼Pressure connection
Material: stainless steel
Thread spec.: G1/4”
▼Adjustable set point range
-0.1 ~ 8MPa
For detail please refer to adjustable set point range table
▼Dead band
Adjustable/Fixed dead band
For detail please refer to adjustable set point range table
▼Applicable fluid
Liquid and gas that compatible with stainless steel
▼Ambient temperature
-40°C to +55°C
▼Fluid temperature
+120°C
▼Operating viscosity
1×10-3m2/s
▼Vibration-proof performance
Max. 40m/s2
▼Protection level
IP65

Other Specifications
▼Installation
Lower mount
▼Case
Die casting aluminum
▼Measuring elements
Bellow
Material: SS316L
▼Switch type
Micro switch SPDT/
Micro switch 2 CKT DB
▼Contact rating
SPDT:
5~15A, 600VAC
0.5A, 125VDC
2CKT DB:
15-125A, 600VAC
▼Switching frequency
20/min
▼Max operating pressure
0.6/1.2/2.0/2.5/5/8/8.5MPa
(Vary from set point range)
▼Repeatability
±1%
▼Service life
2×105 cycles
▼Other requests (Option)
Third party notarized documents
Inspection report (issued by Re-Atlantis)
