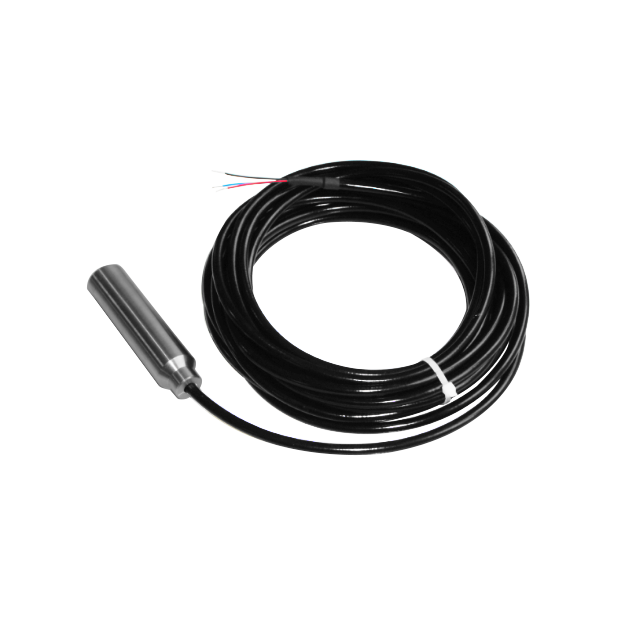

Level Pressure Transmitter LPT-187

Level Pressure Transmitter LPT-187

LPT-187 level pressure transmitter adopts high performance diffused silicon diaphragm as the measuring element, with anti-interference, temperature compensation technology, and low temperature drift. It is suitable to put into media including gas, liquid, steam pressure and even various corrosive media for long- term use. Applications in areas of petroleum, chemistry, metallurgy, electricity, light industry, and machinery, etc.
DETAIL
Level Pressure Transmitter
Model: LPT-187


Introduction
LPT-187 level pressure transmitter adopts high performance diffused silicon diaphragm as the measuring element, with anti-interference, temperature compensation technology, and low temperature drift. It is suitable to put into media including gas, liquid, steam pressure and even various corrosive media for long-term use. Applications in areas of petroleum, chemistry, metallurgy, electricity, light industry, and  machinery, etc.

Features
■ OEM service
■ High accuracy (±0.1%) and stability (<0.2%/year)
■ Applicable to various media and industry fields as mentioned
■ Explosion-proof level (Option): Exia II CT4
■ Flameproof level (Option): Exd II BT5

Main Specifications
▼Pressure connection
M20*1.5 male thread
Diameter: Ø3mm
Material: SS304 / SS316
Other thread specifications are available upon request
▼Pressure type
Gauge pressure
Absolute pressure
▼Measurement range
0…0.3~200mH2O
▼Applicable fluid
Liquid and gas that compatible with pressure connection
▼Operating temperature
-20 to 75℃
▼Anti-interference level
Standard type / Lightening surge protection type (Option)
▼Protection level
IP 68 (Probe)
IP 65 (Terminal box)
▼Explosion-proof level (Option)
Exia II CT4
▼Flameproof level (Option)
Exd II BT5

Other Specifications
▼Case
Aluminum alloy
▼Body
Stainless steel / Teflon
▼Coating
Plastic coating
▼Output signal
4-20mA/0-10mA (2-wire)
0-5V/1-5V (3-wire)
▼Measuring elements
Diffused silicon* diaphragm
(Standard / Anti-corrosive)
▼Temperature compensation
-10 to 70℃
▼Power supply
24VDC
▼Operating voltage
15-36VDC
▼Stability
0.5%/year (Standard)
<0.2%/year (Option)
▼Temp. drift
±0.02%F.S. (Standard)
±0.01%F.S./±0.005%F.S.
(Option)
▼Accuracy
±0.1%/±0.2%/±0.5% F.S.
