PRODUCT

PRRA-LY series pressure reducing valve is suitable for regulating gas pressure. This product has been precisely calculated, measured and processed to precisely adjust the pressure and has a long service life. The sensing system also has a smooth adjustment process and high stability.

MS-FTXWF remote reading thermometer with micro switch, features high contact rating 5A and explosionproof enclosure, which is suitable for temp control in high current and hazardous environment.

MS-FT series remote reading thermometer with micro switch, features high contact rating 5A, which is suitable for temperature control in high current environment.

MS-IT series remote reading thermometer with micro switch, features high contact rating 5A, which is suitable for temperature control in high current environment.

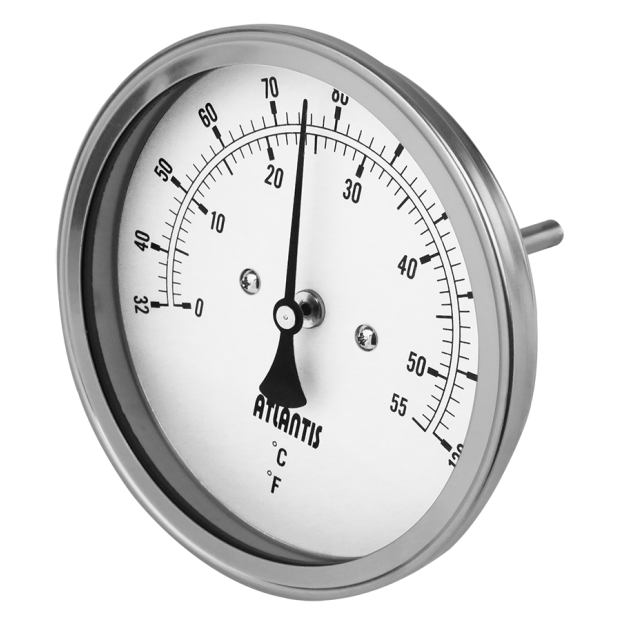

Sanitary Bimetal Thermometer (Back mount type)
Model: BTT-S

Features
■ OEM service
■ Comply with 3A sanitary standard
■ Back mount type
■ All stainless steel design
■ Liquid-filling available upon request
■ Customized stem outer diameter & length

Main Specifications
▼Size
2”, 2.5”, 3”, 4”,5”,6”
▼Installation type
Back mount
▼Window
PC / Tempered glass
▼Process connection
Material: SS 304／SS 316
Size:
Tri-Clamp 0.75”(Ø24.89mm)
Tri-Clamp 1”(Ø50.8mm)
Tri-Clamp 1.5”(Ø50.8mm)
Tri-Clamp 2”(Ø63.5mm)
Tri-Clamp 2.5”(Ø76.2mm)
Tri-Clamp 3”(Ø91.44mm)
▼Stem
Material: SS 304／SS 316
Outer diameter: 6.35mm
(Others available upon request)
Length: Min. 4” Max. 80”
(Include ferrule length)
<Thermowell can be customized in accordance with stem length>
▼Liquid-filling (Option)
Glycerin／Silicon oil／
Vegetable oil
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable fluid
Liquid and gas that compatible with connection material
▼Protection level
IP54 (standard) /
IP65 (option)

Other Specifications
▼Ring
Stainless steel
Crimp
▼Case
SS 304／SS 316
External adjustable screw
(Hexagonal flathead screw)
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Blue and black scale
▼Measuring elements
Bimetal
Temperature sensing area:
Last 50mm of stem
▼Temperature accuracy
1.5% (standard) / 1% (option)
▼Operating temperature
Stabilization: 3/4* F.S.
Short-time: 1* F.S.

Download

Medium-Actuated Thermometer
Model: ITI

Features
■ OEM service
■ Media-actuated thermometer with fast response to ambient temperature
■ All stainless steel design
■ External adjustable screw
■ Full scale accuracy within 1.5%
■ Customized stem length
■ External adjustment screw
■ Dual temperature unit scale (℃/℉)

Main Specifications
▼Type
T type / I type / A type
▼Size
3”, 4”,5”,6”
▼Window
Glass
▼Installation type
Bottom mount
▼Process connection
Material: SS304
Thread size: 1/4”, 3/8”,1/2”,3/4”,1”
Thread type: BSPT, NPT, PF
▼Stem
Material: SS 304／SS 316
Outer diameter: 6.35mm
(Option: 6mm, 8mm, 9.5mm, 12 mm)
The length of stem without thread:
T type：40 mmL
(Min. 35 mmL for > 200℃)
I type＆A type：60mmL
(Min. 40 mmL for > 200℃)
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Protection level
IP 54

Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS304
External adjustable screw
(Hexagonal flathead screw)
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Media-expansion
Temperature sensing area : last 2”~4”of stem
▼Temperature accuracy
1.5% (Option: 1%)
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale

Download

The remote reading thermometer equipped with a buzzer, a flashing indicator or a relay to remote control and monitor connected facility.

FT-M Small remote reading thermometer applicable to measure temperature of dry machine, food, refrigeration and air conditioning, and environmental oil-water separation equipment.

■ OEM service
■ Compact design with affordable price
■ Suitable for temperature measurement that needs remote reading
■ Full scale accuracy: within 3%
■ Medium-actuated measurement ensuring the fastest reaction to ambient temperature

ITI-M gas actuated thermometer adopts all stainless steel material design with custom stem length, diameter and various process connection. Measuring principle adopts gas-actuated to ensure fast reaction to ambient temperature. With silicone oil filling, ITI-M thermometer has better shockproof performance compared to other thermometers.

The capillary of remote reading thermometer is filled with gas or liquid as its sensing elements. FT series thermometer is frequently used in remote temperature measurement to monitor temperature from distance. The outer diameter and length of stem and capillary can be customized to meet the needs of various installation environments.

Sanitary Bimetal Thermometer (Bottom mount type)
Model: BTI-S

Features
■ OEM service
■ Comply with 3A sanitary standard
■ Bottom mount type
■ All stainless steel design
■ Specify oil type available upon request
■ Customized stem outer diameter & length (Include ferrule length)
■ External adjustable screw

Main Specifications
▼Size
2.5”, 3”, 4”,5”,6”
▼Installation type
Bottom mount
▼Window
Tempered glass
▼Process connection
Material: SS 304／SS 316
Size:
Tri-Clamp 0.75”(Ø24.89mm)
Tri-Clamp 1”(Ø50.8mm)
Tri-Clamp 1.5”(Ø50.8mm)
Tri-Clamp 2”(Ø63.5mm)
Tri-Clamp 2.5”(Ø76.2mm)
Tri-Clamp 3”(Ø91.44mm)
▼Stem
Material: SS 304／SS 316
Outer diameter: 6.35mm
(Others available upon request)
Length: Min. 4” Max. 80”
(Include ferrule length)
<Thermowell can be customized in accordance with stem length>
▼Liquid-filling (option)
Glycerin／Silicon oil／Vegetable oil
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable fluid
Liquid and gas that compatible with connection material
▼Protection level
IP54 (standard) /
IP65 (option)

Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS 304／SS 316
External adjustable screw
(Hexagonal flathead screw)
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Blue and black scale
▼Measuring elements
Bimetal
Temperature sensing area: Last 50mm of stem
▼Temperature accuracy
1.5% (standard) / 1% (option)
▼Operating temperature
Stabilization: 3/4* F.S.
Short-time: 1* F.S.

Download
